Wire Clamp, Wire Clamp, Crystal Head Joint, Wire Clamp, Wire Clamp

Item No:MP22422

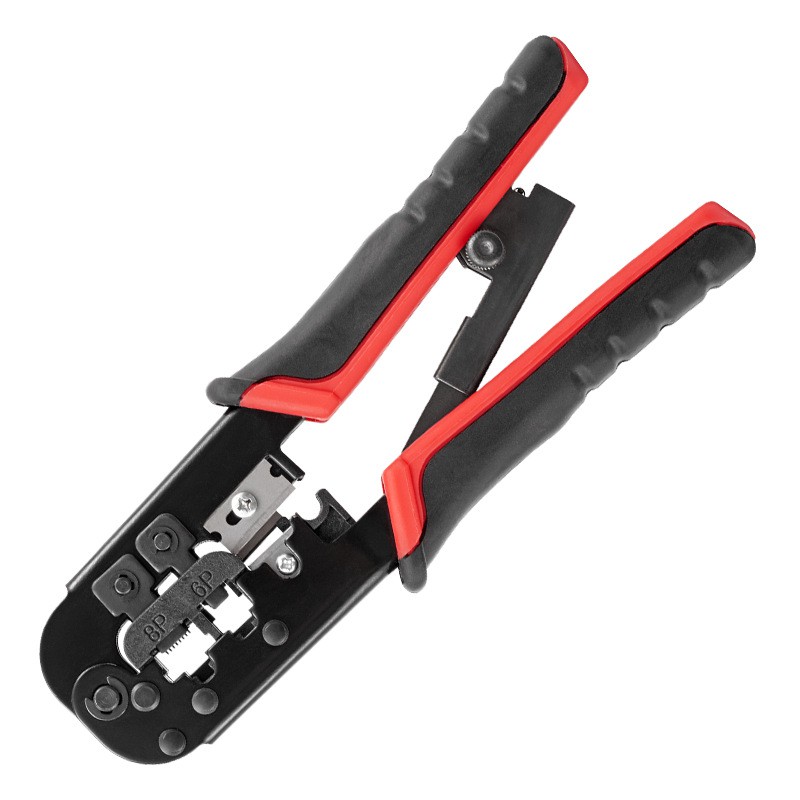

Network cable clamp (also known as wire crimping clamp, network terminal clamp) is a professional tool for making network cable crystal head connectors. It can efficiently complete a series of operations such as wire stripping, wire cutting, and crimping. It is an indispensable tool in network wiring



How to use network cable pliers

Making a usable network cable using a network cable clamp usually involves the following core steps. The correct arrangement of wire sequences is crucial and directly determines whether the network cable can work normally.



1.Stripping: Put one end of the network cable into the stripping opening of the network cable pliers, gently rotate the pliers, peel off about 2-3 centimeters of outer skin, exposing the 4 pairs of twisted pairs inside. Pay attention to the strength and do not damage the insulation layer of the internal core.



2.Thread sorting and sorting: Untie and straighten 8 different colored thread cores and arrange them according to the standard thread sequence. The most commonly used standard is T568B, whose line sequence (crystal head metal face up, shrapnel face down, from left to right) is:

White orange, orange, white green, blue, white blue, green, white brown, brown



3.Cut it straight: Cut the arranged wire cores neatly with the wire cutting opening of the wire pliers, leaving a length of about 1.2-1.5 cm to ensure that all wire cores are of the same length.



4.Insertion and crimping: Insert the finished wire core along the 8 wire grooves inside the crystal head (RJ-45) to the end, ensuring that each wire core is pushed to the top and part of the outer skin also enters the crystal head. Then put the crystal head into the 8P crimping port of the wire clamp, squeeze the handle tightly, and it is completed when you hear a "click" sound.



5.Test: Use a network cable tester to test the prepared network cable. Insert both ends of the network cable into the tester. If all indicators light up in order, it means that the network cable is connected and the line sequence is correct.



Precautions for use



1.Line sequence is the key: Make sure that the line sequence is arranged correctly. This is the first condition for the network cable to work normally.



2.The outer skin must be inserted into the head: During crimping, a part of the outer skin of the network cable should be pressed into the bayonet of the crystal head to enhance the tensile strength of the network cable.



3.Avoid core damage: When stripping the wire, the force should be moderate. Do not damage the insulating skin of the internal wire core, otherwise it may lead to short circuit or disconnection.



4.Shopping suggestions: For household or occasional use, choosing a three-purpose cable clamp with good reputation (compatible with RJ45, RJ11, and 4P) can usually meet the needs and be cost-effective.



💎Summary

The core value of the network cable clamp is that it can complete the production of network cable connectors in a standardized and efficient manner and ensure the reliability and stability of the connection. Whether it is home network connections, office wiring, or large-scale deployment of data centers, it is indispensable.
