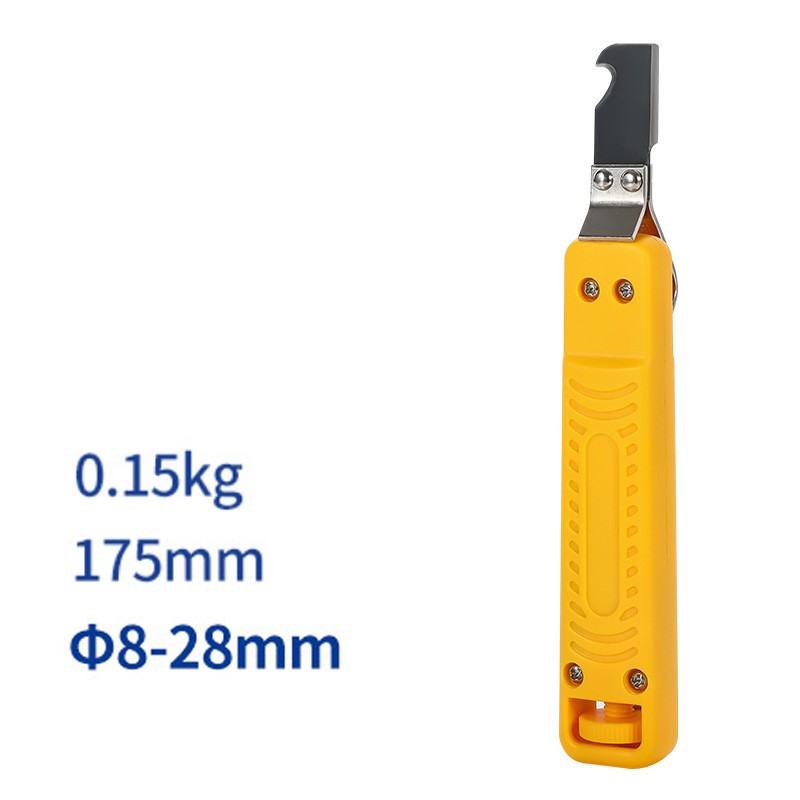

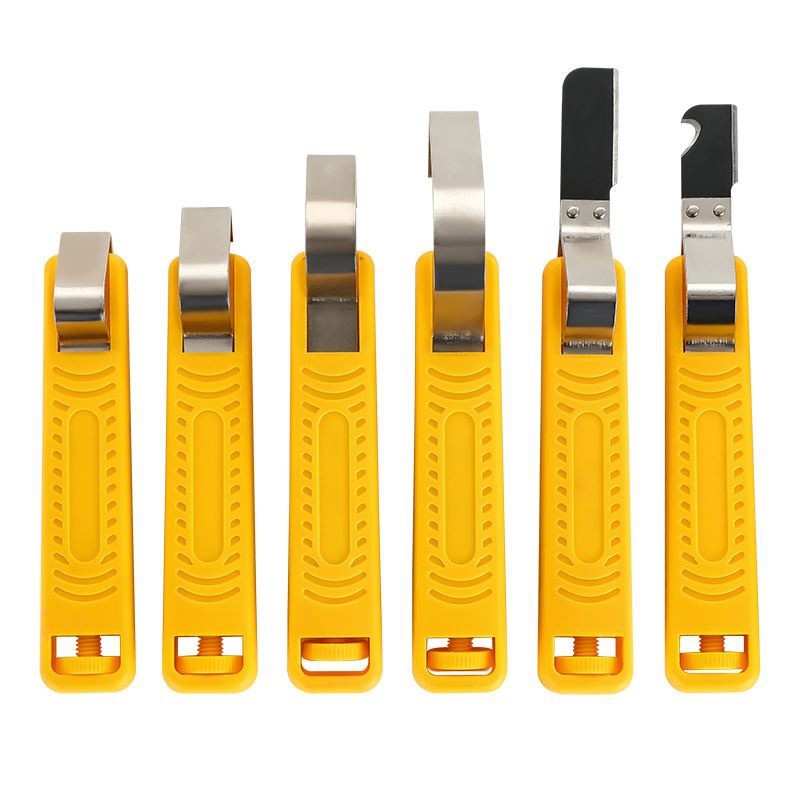

Cable Stripper Network Wire Coaxial Cable Stripping Pliers Tool Portable Rotary Stripping Pliers

Item No:MP2280



Cable stripper (especially portable rotary wire sc* pliers for network cables and coaxial cables) is a professional tool specially designed for communication cables, network wiring and other scenarios. Its functional design is more suitable for high-frequency cables and fine-diameter cables. Stripping requirements, the following are the specific functions, uses and characteristics:



Core function: Accurately strip the insulation layer of network cable/coaxial cable

1.Stripping network cables (such as Cat5e, Cat 6)

Through a rotating edge or adjustable ring cut design, the outer skin is evenly cut along the circumference of the cable to avoid damage to the internal 8-core twisted pair or shielding layer.

Some tools have graduated marks that can accurately control the stripping length (such as reserving a 15mm outer incision) to facilitate crimping of crystal heads or termination of distribution frames.



2.Stripping coaxial cables (such as RG6, RG59)

For the multilayer structure of "outer sheath-shield-insulation-inner conductor" of coaxial cables, it can be peeled off in layers:

First peel off the outer sheath to expose the metal woven mesh or aluminum foil shielding layer;

The shielding layer is then peeled off and the internal insulation layer and center conductor are retained to ensure the stability of signal transmission (such as cable TV and monitoring cable installation).



Rotating design: Efficient handling of round cables

Portable rotary stringing structure

The handle rotates to drive the annular blade to cut around the cable. Compared with traditional wire stripping pliers, which requires manual control of the force, the rotary design makes it easier to maintain a uniform incision, which is especially suitable for long-distance wire stripping (such as pretreatment of the entire coil of cable).

Suitable for circular cables with uniform diameter (such as network cables, coaxial cables, video cables) to avoid skin tearing or internal core damage caused by manual stripping.



Multifunctional layered wire stripping: Adapt to complex cable structures

Dedicated functions for network lines

Some tools integrate the three-in-one function of "wire cut-stripping-wire parting":

Wire cutting: The blade can cut the entire network wire;

Stripping: After circumscribing the outer skin, peel off the outer skin by stretching the handle;

Splitting: Some models have grooves to assist in separating 8-core wire pairs (such as sorting out the wire sequence when making network cables).



Coaxial cable layered processing

For example, first use a wire stripper to cut the outer sheath, then use a jaw to pick up the shielding layer, and finally peel off the insulating layer to avoid the residual shielding layer affecting the signal interference immunity.



Portability: Adapt to field wiring scenarios

Small and lightweight design

The volume is usually smaller than that of traditional wire strippers, and the handles are mostly made of non-slip materials, suitable for one-handed operation. They are especially flexible when wiring in narrow spaces such as bridges and cabinets (such as comprehensive wiring engineering, monitoring installation).



Rapid stripping efficiency

Rotating operation saves time than traditional "clip-peel" actions and is suitable for batch processing of cables (such as data center wiring and home network renovation).



applicable scenarios

1.Network engineering: production of network cable crystal heads, installation of distribution frames, and wiring of local area network (such as enterprise computer rooms and home WiFi deployment).

2.Communication equipment: Coaxial cables connect set-top boxes, satellite antennas, and surveillance cameras (such as video transmission lines in security systems).

3.Audio and video wiring: Peel off the sheath of shielded cables such as HDMI cables and audio cables to ensure the quality of signal transmission.

4.Electronic maintenance: Stripping and repairing precision cables (such as radio frequency cables and sensor connecting cables) to avoid damaging small core wires.



Precautions for use

1.Matching cable diameter: Rotary wire stripers are usually marked with the applicable diameter range (such as 2-8mm). The corresponding gear needs to be selected according to the thickness of the network cable or coaxial cable to avoid excessive tightening and crushing of the wire core or excessive loosening resulting in uneven incisions.

2.Control the rotation force: Rotate the handle at a constant speed during circumferential cutting to avoid excessive force causing the blade to cut too deep (especially the insulation layer of coaxial cables is thin, so the depth needs to be accurately controlled).

3.Shield treatment: After peeling off the shield layer of the coaxial cable, fold the metal mesh or aluminum foil neatly to avoid burrs and short circuits (for example, ensure that the shield layer is grounded when connecting the F head).
