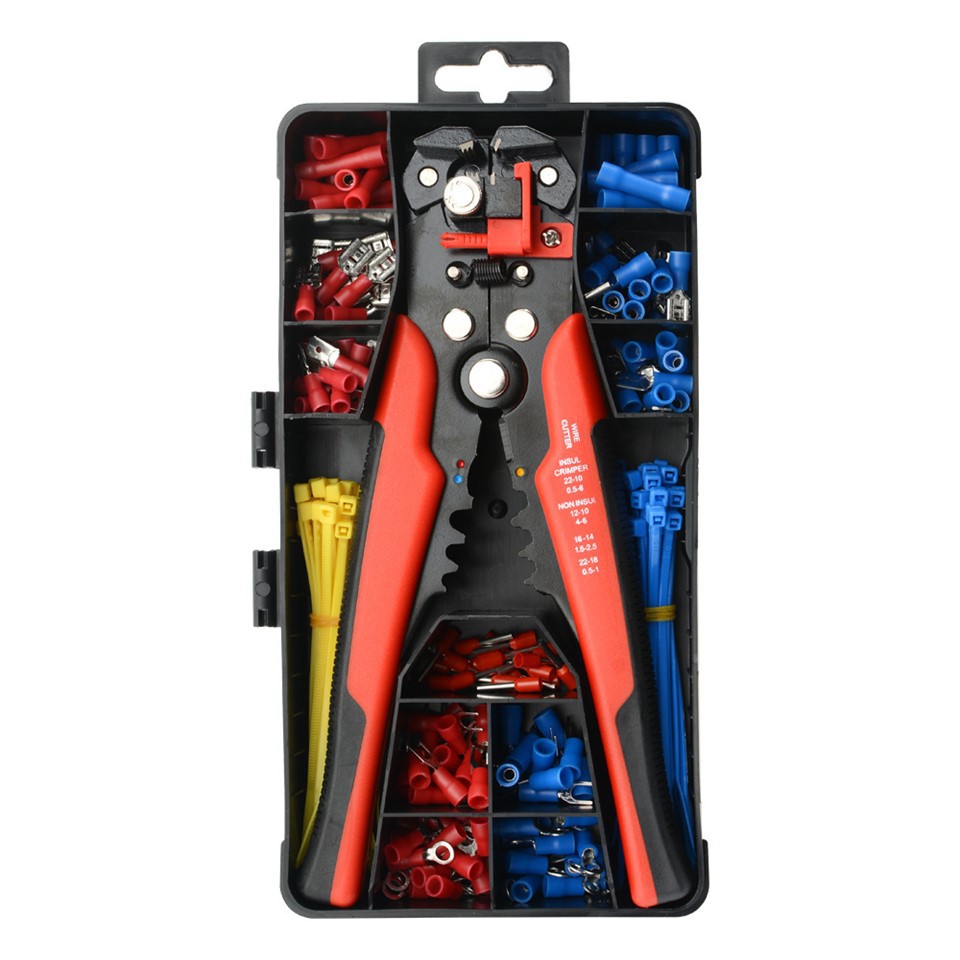

Wire Stripping Pliers Special Tools For Electrical Purposes Automatic Multifunctional Pliers Terminal Tool Set

Item No:MP23133





1. Overview of the core components and functions of the tool suite

This kit is a multi-functional tool combination with electrical wire processing as the core. It integrates functions such as wire stripping, wire cutting, wire crimping, and terminal crimping, and is suitable for full-scene operations from home circuits to industrial electrical. Typical sets include:



Automatic wire stripping pliers: intelligently adjust the wire diameter to accurately strip the insulation layer;



Multifunctional pliers: It has the functions of stripping, cutting, clamping and bending wires;



Terminal crimping tool: Adapt to professional connections such as cold pressed terminals and pin terminals;



Auxiliary tools: test pens, wire strippers, screwdrivers, etc. to improve the entire electrical operation process.



2. The role and application scenarios of core tools

1. Automatic wire stripping pliers: accurate treatment of wire insulation

Application scenarios:

Power wiring: Strip the insulation layer of BV single-strand wire and RV multi-strand cord (0.5-6mm²) for socket, switch installation and distribution box wiring;

Electronic maintenance: Handle thin wires (such as 0.1mm² enameled wires, sensor cables), adapt circuit board welding, and wiring electrical components;

Automation equipment: Strip industrial control lines (such as PLC signal lines, servo motor cables) in batches to improve assembly line efficiency.

Functional advantages:

Automatically identify the wire diameter to avoid copper core damage caused by manual wire stripping;

Adjustable stripping length (5-20mm), adapted to different requirements such as terminal crimping and wire hinging.





2. Multifunctional pliers: Integrated wire operation

Stripping and cutting:

The cutting edge scale corresponds to the wire diameter (such as 0.5mm², 1mm ²), and manually strip off the single strand wire or cut off copper/aluminum wire with a diameter of ≤ 4mm;

Suitable for field operations, emergency maintenance and other scenarios without automatic tools (such as outdoor cable repair).

Clamping and bending:

Clamp wires or small parts (such as terminal terminals) to assist in welding or installation;

Bend the single-stranded wire into U and O shapes and directly connect it to the terminal (such as household lighting wiring).



3. Terminal crimping tools: the core of professional electrical connections

Cold pressed terminal crimping:

Adapt OT type (round) and UT type (fork type) terminals (2.5-16mm²) for wire connection of distribution cabinets and motor terminals to ensure low resistance conduction;

Industrial scenario case: Crimp the input and output terminals of the inverter to avoid overheating of the equipment caused by virtual connection.

Pin/blade terminal crimping:

Cable terminals such as PH2.0 and XH3.96 are adapted in electronic equipment and are used for connecting PCB boards and wiring harnesses (such as home appliance control panels and automobile instrument panel circuits).



4. Assistive tools: Improve the entire electrical operation process

Test pen: neon tube type or digital display type to detect whether the circuit is charged (such as checking home line faults and confirming power failure);

Wire stripping knife: Hand stripping off the sheath or insulation layer of large diameter cables (such as power cables above 10mm²);

Screwdriver: with a cross/one head, tighten electrical screws (such as fixing the switch panel and installing the terminal strip in the distribution box);

Crimp cap tool: Crimp screw Crimp cap, used for branch connection of home lighting lines (such as the confluence of multiple strands of chandeliers).















3. Usage specifications and precautions

Specifications matching:

The edge of wire stripping pliers must correspond to the wire diameter (for example, use the corresponding scale to strip 2.5mm² wire) to avoid copper core breakage;

The terminal crimping tool needs to match the terminal specifications (e.g., the corresponding mold hole position for 4mm² terminals) to ensure that the crimping depth meets the standard.



Safe operation:

Use insulated handle tools during live work, and use a test pen to confirm that the line has no electricity before stripping;

When crimping large-size terminals, hold the tool handle with both hands to avoid hand injuries caused by reaction force.



Maintenance:

Clean copper chips on the blade after use and apply anti-rust oil (especially in humid environments);

If the terminal clamp mold is deformed or worn, replace it in time to prevent circuit failure caused by poor crimping.
